Modular Fire Extinguishers – 24/7 Automatic Ceiling-Mounted Fire Suppression

When protecting enclosed commercial spaces, unmonitored server bays, generator enclosures, and warehouse storage docks, deploying a high-performance modular fire extinguisher provides dependable 24/7 automatic protection. While manual hand-portable extinguishers depend on human intervention, an automatic modular fire extinguisher operates autonomously around the clock. Mounted directly above critical hazard zones, a modular fire extinguisher activates within seconds of detecting rapid thermal escalation, knocking down localized flare-ups before they spread into catastrophic facility-wide blazes.

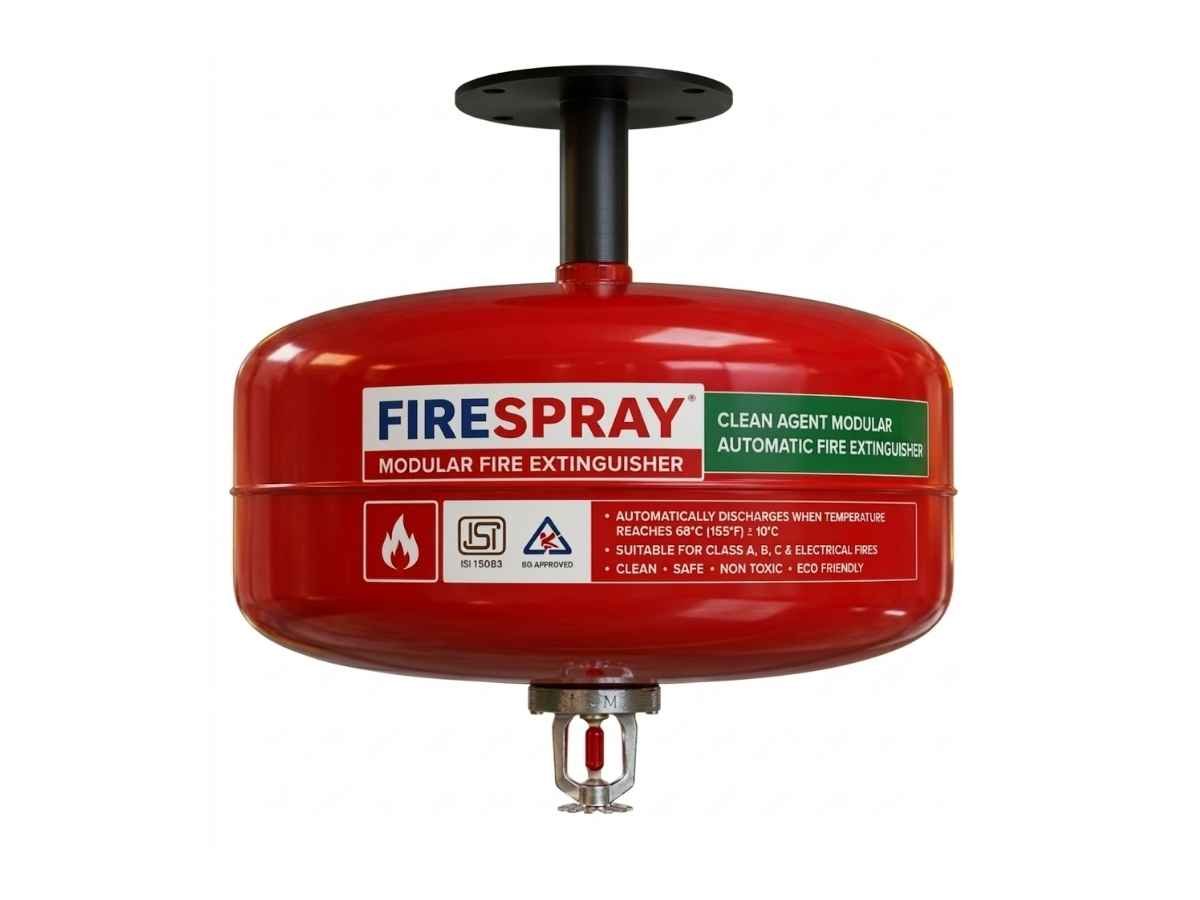

A ceiling-mounted modular fire extinguisher consists of a robust spherical or cylindrical pressure vessel, a precise thermal sensing bulb mechanism (typically calibrated to burst at 68°C), and a wide-angle dispersion deflector. When an active blaze generates intense rising heat, the heat-sensitive glass bulb shatters, releasing the pressurized extinguishing agent instantaneously. This rapid, conical downward discharge suppresses the fire at its origin. Installing a certified modular fire extinguisher ensures complete safety across unstaffed night shifts, automated assembly lines, and remote facilities.

At firespray.in, we engineer and supply heavy-duty, certified automatic ceiling suppression units built to strict national safety guidelines. Whether you need dry chemical powder systems for industrial storage racks or specialized clean gas configurations for delicate IT racks, exploring our primary Modular Fire Extinguisher category ensures your commercial infrastructure is shielded with high-grade, automated fire defense hardware.

The Science of Automatic Modular Fire Suppression

The operational effectiveness of a ceiling-mounted modular fire extinguisher relies on rapid thermal detection and localized high-density flooding:

1. Passive 24/7 Thermal Sensing

Unlike complex electronic suppression systems requiring wired smoke sensors and external electrical supplies, a modular fire extinguisher uses an independent thermo-bulb actuator. Filled with a temperature-reactive liquid, the bulb expands under rising heat and bursts precisely at its rated threshold (commonly 68°C), discharging the entire cylinder without needing grid power or manual intervention.

2. Conical Downward Dispersion

Engineered with specialized deflector plates, a modular fire extinguisher releases its contents in a 360-degree conical distribution pattern. This wide coverage blankets the equipment underneath evenly, cutting off atmospheric oxygen and suppressing flames rapidly across the targeted floor area.

3. Rapid Smothering and Heat Absorption

Whether charged with multi-purpose ABC chemical powder or specialized clean agent gas, a modular fire extinguisher neutralizes fires through rapid chemical chain-reaction interruption and immediate thermal cooling, preventing structural damage to surrounding equipment.

Key Types: ABC Powder vs. Clean Agent Modular Units

Depending on the assets within your facility, you can choose between multi-purpose chemical powder and residue-free clean gas systems:

• Automatic ABC Powder Units: Charged with monoammonium phosphate, these units deliver rapid knockdown across Class A solid combustibles, Class B liquid fuels, and electrical equipment. They provide high-capacity coverage for warehouse racking, paint booths, and machinery bays.
• Automatic Clean Agent Units: For sensitive server rooms and high-voltage panels where powder residue cannot be tolerated, a specialized Clean Agent Modular Fire Extinguisher discharges an eco-friendly, non-conductive gas that leaves zero residue, allowing immediate resumption of business operations.

Primary Application Environments for Modular Suppression

Installing an automatic modular fire extinguisher is essential across diverse commercial, technical, and industrial environments where continuous manual monitoring is impractical:

• Server Rooms, Data Centers & UPS Bays: Protects mission-critical IT racks and power distribution units from catastrophic electrical fire damage without requiring human response.
• Electrical Switchgear & Transformer Rooms: Mount directly above distribution boards and control panels. Pair these ceiling units with our dedicated Fire Extinguisher For Electrical Panel range for complete enclosure protection.
• Generator Enclosures & Engine Rooms: Provides instant automatic response to fuel leaks or overheated diesel generator compartments.
• Flammable Chemical & Solvent Storage: Safeguards solvent decanting stations, chemical mixing hubs, and paint lockers from rapid liquid flare-ups.
• High-Density Warehouse Racking: Positioned within dead-corner storage aisles and mezzanine decks where standard wall-mounted cylinders cannot be deployed quickly.

Installation & Strategic Mounting Guidelines

To ensure optimal coverage and rapid activation during a thermal event, safety engineers should follow these core installation parameters when positioning a modular fire extinguisher:

1. Height and Clearance: Install the cylinder at the recommended height (typically between 1.5 and 3 meters above the hazard area) to ensure the discharge cone covers the entire footprint of the protected equipment.

2. Direct Thermal Alignment: Position the modular fire extinguisher directly above high-risk ignition points (such as circuit breakers, fuel pumps, or battery banks) to ensure rising thermal air currents reach the sensing bulb without delay.

3. Structural Rigidity: Secure the heavy-duty mounting bracket directly to concrete ceiling slabs or structural steel I-beams using anchor bolts to prevent vibration displacement.

4. Unobstructed Spray Pathway: Ensure overhead ductwork, conduit trays, or suspended lighting fixtures do not block the downward dispersion angle of the nozzle.

Building a Complete Multi-Tiered Fire Defense Network

While an automatic modular fire extinguisher provides crucial passive coverage for unmonitored spaces, comprehensive facility safety requires pairing overhead systems with manual suppression hardware:

• Multi-Purpose Manual Dry Powder Cylinders: Equip hallways and main workstations with manual ABC Fire Extinguisher units, standard ABC Type Fire Extinguisher models, or heavy-duty 6 Kg ABC Fire Extinguisher hardware for active employee response.
• Electrical & Gas Cylinder Protection: Supplement server rooms and control centers with portable residue-free options like a certified Clean Agent Fire Extinguisher or a high-pressure CO2 Fire Extinguisher.
• Liquid & Foam Suppression Equipment: For bulk fuel depots and oil storage docks, pair automatic ceiling units with a high-capacity Foam Fire Extinguisher, Foam Type Fire Extinguisher, or mobile Mechanical Foam Fire Extinguisher trolley.
• Autonomous Fire Ball Safety: Supplement hard-to-reach wiring bays and enclosed battery lockers with a self-activating Fire Ball or Fire Extinguisher Ball.
• Culinary & Class A Defense: Protect kitchen cooking lines with a specialized Kitchen Fire Extinguisher or Type K Fire Extinguisher, and equip solid-combustible warehouses with a Water Fire Extinguisher or Water Type Fire Extinguisher.
• Mounting Hardware & Accessories: Secure your entire equipment lineup using certified Fire Extinguisher Accessories, heavy-duty Fire Extinguisher Stand units, or outdoor canopied solutions like the Fire Bucket Stand With Canopy.

Quality Standards & BIS Regulatory Compliance

All automatic fire suppression hardware supplied by firespray.in complies strictly with the design, testing, and performance criteria defined by the Bureau of Indian Standards (BIS). Our automatic units conform to IS 15683 standards, undergoing rigorous hydrostatic shell pressure testing, thermal bulb response verification, and cyclic vibration durability audits. Deploying certified, ISI-marked modular fire extinguisher systems ensures your business passes statutory industrial safety audits, municipal fire clearance inspections, and insurance risk assessments effortlessly.

Maintenance Protocols for Modular Fire Systems

Because an automatic modular fire extinguisher remains stationary above high-risk equipment, routine maintenance checks ensure guaranteed activation readiness:

1. Monthly Pressure Gauge Audit: Verify from ground level that the pressure gauge needle sits firmly within the green operational zone.

2. Thermo-Bulb & Deflector Inspection: Visually inspect the glass bulb mechanism for dust accumulation, chemical deposits, or mechanical impact damage that could impede thermal responsiveness or spray dispersion.

3. Ceiling Mount & Clamp Verification: Confirm that overhead mounting brackets, anchor bolts, and support clamps remain rigidly anchored and free of structural corrosion.

4. Periodic Hydrostatic Shell Testing: In compliance with statutory pressure equipment mandates, high-pressure modular steel shells must undergo periodic hydrostatic testing to confirm shell integrity.

Procure Certified Modular Fire Extinguishers via Firespray.in

Sourcing the ideal automatic modular fire extinguisher capacity for your facility is simple when you choose to Buy Fire Extinguisher Online through firespray.in. Check our full specifications across all product ranges, review transparent pricing via our Fire Extinguisher Price index, or consult our comprehensive guide on 5 Main Fire Extinguisher Types.

As a leading Fire Extinguisher Manufacturer In India working alongside nationwide Fire Extinguisher Dealers, firespray.in delivers certified products, automatic safety hardware, and customized Fire Safety Solutions nationwide to keep your physical infrastructure protected 24/7.
