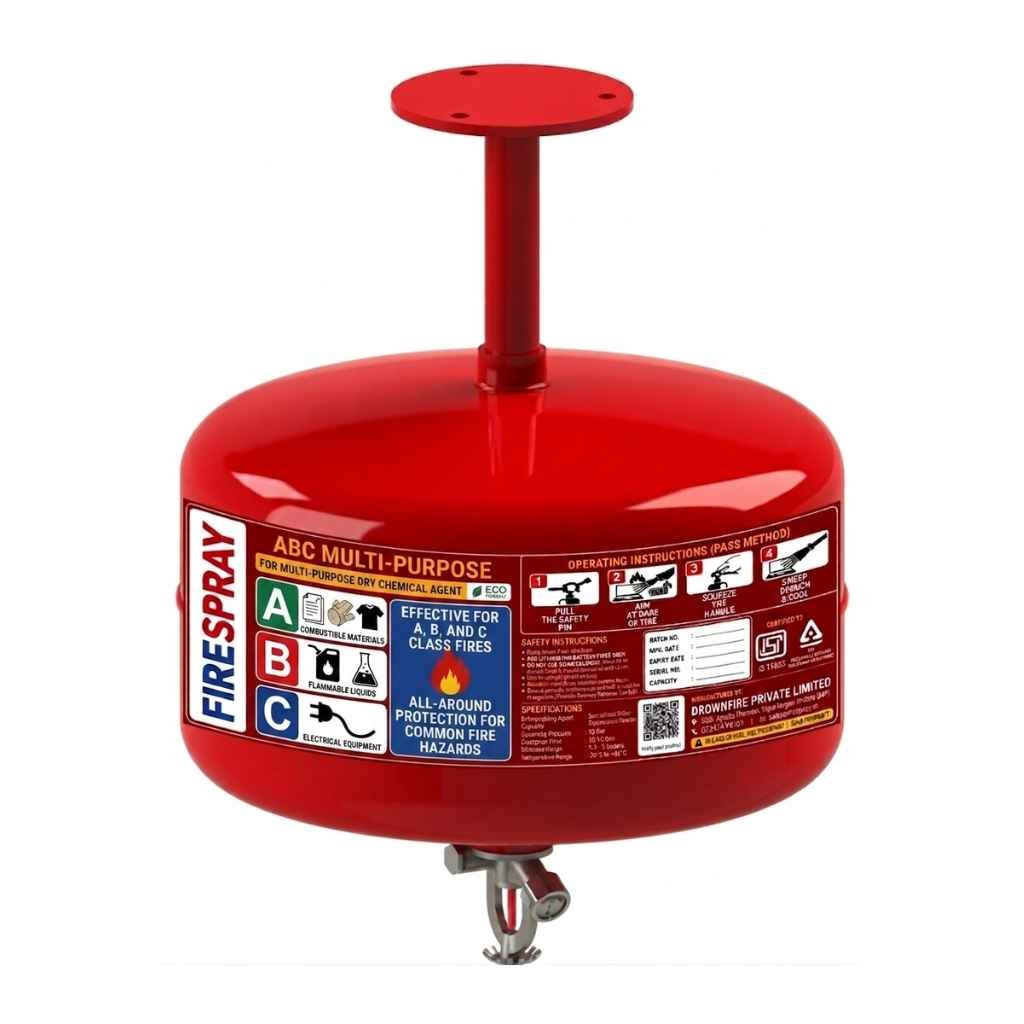

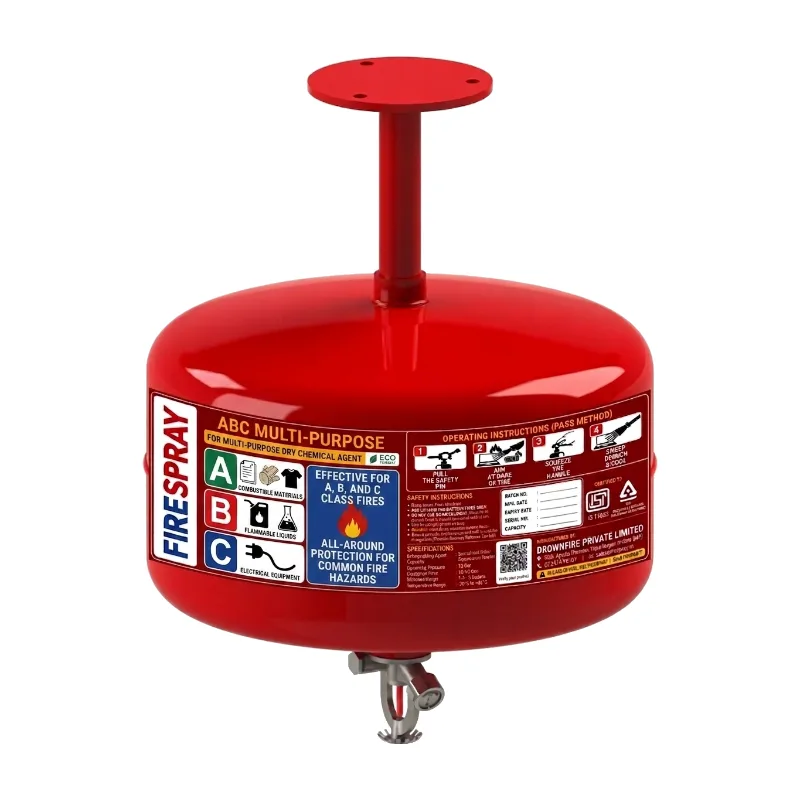

Certified Ceiling Mounted Fire Extinguisher – Automatic Modular MAP 50 System

When protecting enclosed, high-risk industrial environments such as electrical switchgear rooms, server banks, generator enclosures, and remote warehouses, manual intervention is rarely fast enough to prevent major property loss. An automatic ceiling mounted fire extinguisher offers continuous 24/7 protection by detecting and suppressing fires at their source without human intervention. Our heavy-duty Modular (MAP 50) pressure vessel is specifically engineered for overhead installation, acting as an autonomous ceiling mounted fire extinguisher that delivers immediate multi-class fire suppression when every second counts. Loaded with high-potency Monoammonium Phosphate (MAP 50) dry chemical powder, this overhead unit neutralizes sudden thermal outbreaks before flames can compromise critical building infrastructure. Enclosed operational zones housing high-voltage electrical panels, transformer units, or flammable liquid storage often remain unmonitored for extended periods, particularly outside standard operating hours. Installing a dedicated ceiling mounted fire extinguisher ensures your facility maintains an active defense perimeter day and night. At firespray.in, we engineer every automatic ceiling mounted fire extinguisher to satisfy strict quality control benchmarks, pairing rapid thermo-bulb actuation with industrial-grade steel pressure vessel manufacturing for uncompromised reliability.

Advanced MAP 50 Dry Chemical Suppression Technology

The core suppression efficacy of an automatic overhead vessel relies on the chemical purity and concentration of its active agent. Our modular systems are charged with high-potency 50% Monoammonium Phosphate (MAP 50) dry chemical agent, formulated for rapid flame knockdown across mixed-hazard applications.

Chemical Mechanism of Action

Upon heat activation, the overhead ceiling mounted fire extinguisher disperses a dense cloud of siliconized MAP 50 powder downward into the hazard zone. The dry chemical suppresses the fire tetrahedron through simultaneous chemical and physical reactions:

• Combustion Chain Reaction Interruption: As active MAP 50 particles release from the ceiling mounted fire extinguisher directly into the thermal plume, they absorb heat and decompose, scavenging free radicals to break the chemical chain reaction instantly.
• Oxygen Isolation & Smothering: On contact with hot surfaces, the active agent melts into a glassy metaphosphoric acid layer. This impermeable coating seals the fuel substrate, isolating it from surrounding oxygen and preventing dangerous re-ignition.
• Electrical Non-Conductivity: Monoammonium Phosphate is electrically non-conductive, making every ceiling mounted fire extinguisher completely safe for deployment over live electrical switchboards, motor control centers, and energized equipment.

Automatic Heat-Actuated Discharge Assembly

Unlike conventional portable units like a standard ABC Type Fire Extinguisher that require an operator to manually pull a pin and squeeze a handle, our ceiling mounted fire extinguisher operates automatically via a heat-sensitive thermo-bulb glass valve assembly fitted to the discharge orifice.

Thermal Bulb Temperature Ratings

The modular unit incorporates a liquid-filled glass bulb designed to shatter at a precise ambient temperature threshold (typically pre-set at 68°C or 79°C based on room requirements). When an outbreak occurs beneath a ceiling mounted fire extinguisher:

• Convective heat rises toward the ceiling structure, causing the internal fluid within the thermo-bulb to expand.
• Upon reaching the pre-calibrated activation temperature, the glass bulb ruptures cleanly.
• The internal valve seal releases, allowing nitrogen pressure inside the ceiling mounted fire extinguisher to instantly discharge the MAP 50 powder in a full 360-degree radial spray pattern.

Multi-Class Hazard Protection (Class A, B, and C)

The operational versatility of our Modular (MAP 50) system eliminates the need to install multiple distinct suppression media across complex hazard zones:

• Class A Hazards (Solid Combustibles): Protects overhead storage bays, timber, paper archives, packaging materials, and synthetic plastics against deep-seated embers.
• Class B Hazards (Flammable Liquids): Rapidly smothers liquid pool fires involving diesel fuel lines, solvents, lubricants, industrial oils, and paints.
• Class C Hazards (Energized Electrical & Flammable Gases): Safely extinguishes live electrical arc blazes in switchgear rooms, transformer vaults, motor control centers, and gas storage bays.

Industrial-Grade Pressure Vessel Engineering

As an established Fire Extinguisher Manufacturer In India, we build our automatic modular cylinders to withstand high internal pressures and severe industrial environments over long static deployment periods.

Build & Material Specifications

• Deep-Drawn Steel Shell: Constructed from cold-rolled steel to guarantee structural integrity and long-term pressure retention.
• Anti-Corrosive Powder Coating: External surfaces receive multi-stage chemical pretreatment followed by a UV-resistant polyester red powder coating to prevent corrosion in humid environments. For harsh marine or chemical processing conditions, evaluate our Stainless Steel ABC Fire Extinguisher range.
• Precision Pressure Gauge: Outfitted with a vibration-resistant visual pressure gauge for rapid monthly maintenance audits.

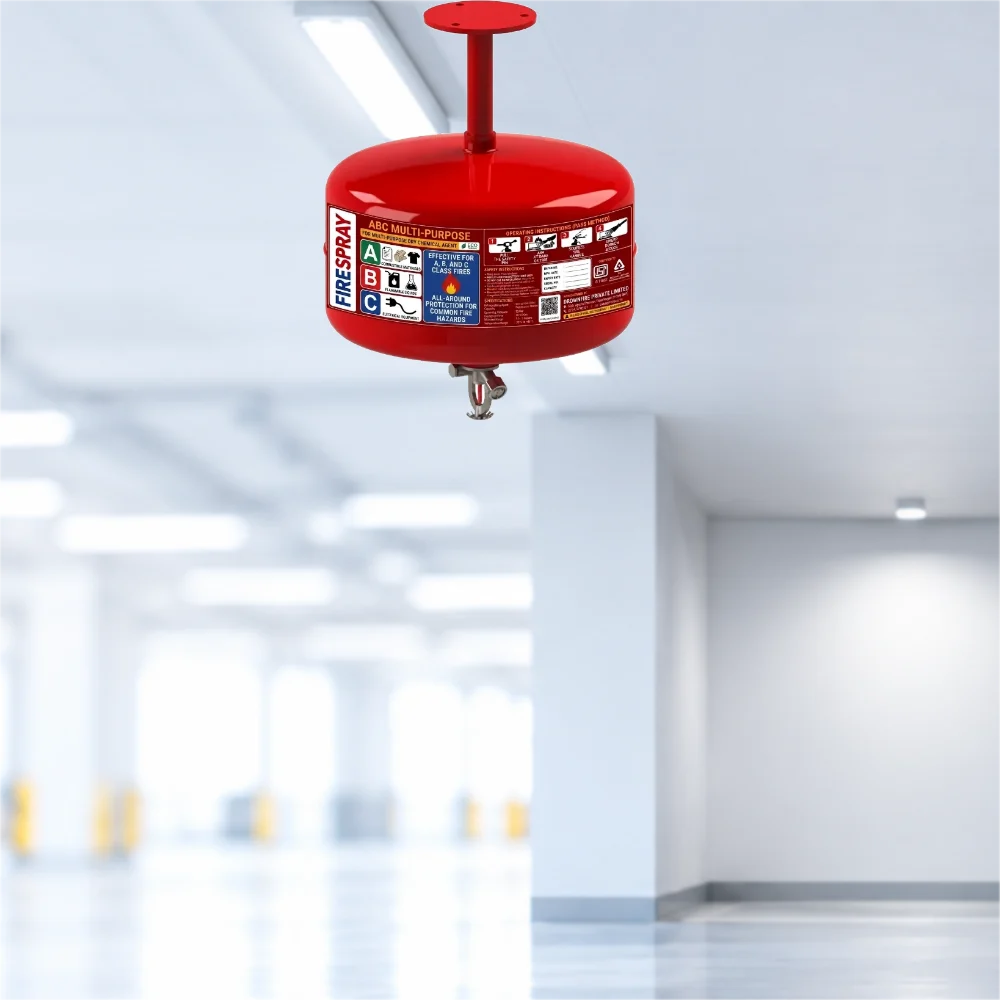

• Heavy-Duty Overhead Mounting Assembly: Supplied with a reinforced suspension bracket designed to support the full mass of the cylinder securely against overhead beams or ceilings.

Key Deployment Environments

Installing an automatic ceiling mounted fire extinguisher is ideal for facilities seeking autonomous fire safety without the capital expenditure of full-scale sprinkler networks or fixed piping runs:

• Electrical Switchgear & Substation Rooms: Mounts directly above main circuit breakers, transformer bays, and distribution boards. For sensitive IT hardware, consider pairing with our Clean Agent Modular Fire Extinguisher.
• Server & Telecom Equipment Hubs: Provides localized overhead protection for server racks, cleanrooms, and battery banks alongside specialized units from our CO2 Fire Extinguisher collection.
• Diesel Generator (DG) Enclosures: Covers engine bays where fuel leaks and high exhaust temperatures create elevated risks of ignition.
• Paint Booths & Chemical Storage: Rapidly blankets volatile solvent storage areas across manufacturing facilities.

Inspection & Maintenance Protocol

Maintaining regulatory compliance requires routine visual audits to ensure that every automatic ceiling mounted fire extinguisher remains fully pressurized and operational.

Inspection Parameter	Check Requirement	Action Required
Pressure Gauge	Needle on the pressure gauge must point clearly within the green operational zone.	Depressurized units must be serviced immediately by a qualified technician.
Thermo-Bulb Valve	Inspect the glass bulb for cracks, paint over-spray, or heavy dust accumulation.	Gently clean the bulb assembly or replace damaged thermal components.
Mounting Assembly	Ensure ceiling anchors and hanging brackets remain tightly secured to structural supports.	Re-tighten structural mounting hardware if looseness is detected.
Nozzle Clearance	Verify zero physical obstructions exist within a 1.5-meter radius below the discharge nozzle.	Remove stacked inventory, shelving, or hardware positioned beneath the unit.

Work with authorized Fire Extinguisher Dealers to conduct mandatory periodic weight verification, powder agitation, internal inspections, and hydrostatic pressure testing at prescribed intervals.

Procure Certified Safety Gear via Firespray.in

Sourcing certified automatic suppression hardware is straightforward when you choose to Buy Fire Extinguisher Online at firespray.in. Explore options across our complete Modular Fire Extinguisher selection, or compare portable options like our heavy-duty 6 Kg ABC Fire Extinguisher and standard units in our primary ABC Fire Extinguisher category. You can also review overall rates on our ABC Fire Extinguisher Price catalog. Whether you require a single unit for an isolated generator room or bulk shipments of our certified ceiling mounted fire extinguisher for major industrial layouts, firespray.in delivers nationwide Fire Safety Solutions to protect your building around the clock.
