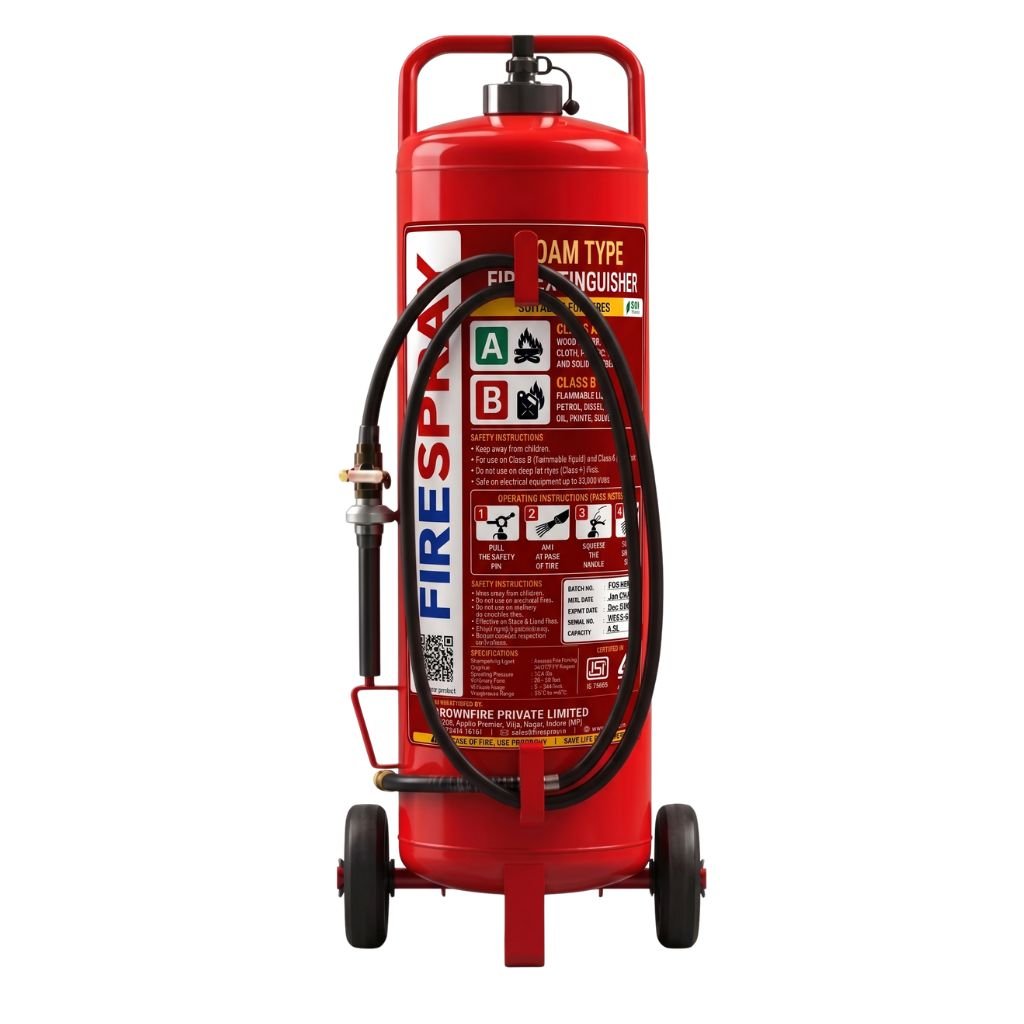

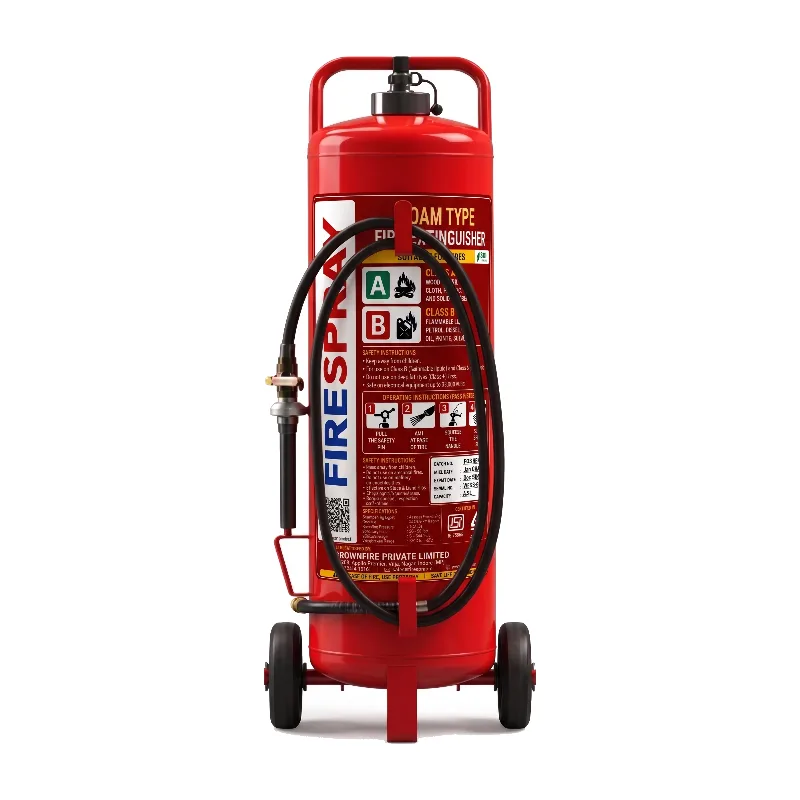

Mechanical Foam Fire Extinguisher – Heavy-Duty Wheeled Suppression

When outfitting industrial facilities, fuel depots, chemical processing plants, and airport hangars against large-scale flammable liquid spills, deploying a high-capacity mechanical foam fire extinguisher mounted on a heavy-duty trolley frame provides the ultimate line of defense. While portable hand-held units offer localized response for minor flare-ups, large-volume Class B liquid hazards demand a mobile, high-volume suppression solution. A wheeled mechanical foam fire extinguisher combines massive agent volume with mobile maneuverability, allowing rapid deployment to extinguish high-risk hydrocarbon fires across expansive industrial zones. Mechanical foam units operate by forming a continuous, aqueous blanket over burning liquid fuels like petrol, diesel, paints, solvents, and alcohols. Unlike standard dry powder devices that can leave unburned vapors exposed to ignition, a high-expansion mechanical foam fire extinguisher lays down a durable Aqueous Film Forming Foam (AFFF) or Fluoroprotein foam matrix. This dense foam layer smothers flames by cutting off atmospheric oxygen while simultaneously cooling hot fuel surfaces to prevent dangerous vapor re-ignition. Selecting a heavy-duty wheeled mechanical foam fire extinguisher guarantees long discharge durations, extended throw ranges, and maximum operator safety during high-intensity thermal emergencies. At firespray.in, we manufacture certified, industrial-grade fire safety hardware designed to withstand severe environmental and thermal stress. Equipping your bulk storage yards, refineries, marine docks, and manufacturing plants with an ISI-marked wheeled mechanical foam fire extinguisher ensures full regulatory compliance, long-term pressure vessel durability, and reliable heavy-duty fire protection across all high-hazard commercial environments.

Engineering & Operational Design of Wheeled Mechanical Foam Units

The exceptional suppression efficiency of a heavy-duty, wheeled mechanical foam fire extinguisher stems from its specialized mechanical design and foam expansion physics:

1. High-Capacity Pressure Vessel & Heavy-Duty Trolley Mechanics

Forged from heavy-gauge cold-rolled steel sheet with internal anti-corrosion plastic or epoxy lining, the primary reservoir holds high volumes (typically 50 Litres to 150 Litres) of pre-mixed AFFF foam solution. The unit is mounted on a rugged tubular steel trolley equipped with solid rubber or pneumatic wheels, allowing a single operator to move heavy liquid payloads effortlessly across rough industrial terrain, gravel yards, and factory floors.

2. External Nitrogen Cylinder / Stored Pressure Propulsive Power

To propel high-density foam streams over long distances, a wheeled mechanical foam fire extinguisher uses either a dedicated high-pressure external Nitrogen gas cylinder or an internal pressurization system. Upon opening the high-flow discharge valve, the propulsive gas drives the liquid foam concentrate through a long, high-pressure rubber hose directly to the specialized foam-making branchpipe nozzle.

3. Aeration Branchpipe & AFFF Blanket Formation

As the pre-mixed foam solution exits the discharge hose, it passes through an aspirating branchpipe nozzle. The nozzle draws ambient air into the high-velocity liquid stream, mechanically aerating the liquid into a dense, expanding foam blanket. When sprayed across burning liquid pools, this foam floats over the fuel surface, sealing off volatile hydrocarbon vapors and smothering the fire in seconds.

4. Vapor Suppression & Rapid Surface Cooling

In addition to oxygen displacement, the water content within the mechanical foam matrix absorbs tremendous amounts of thermal energy as it evaporates. This rapid cooling effect lowers fuel temperatures below their flashpoint, providing an extra layer of protection against flashback and reignition even under windy outdoor conditions.

Comparative Analysis: Wheeled Mechanical Foam vs. Portable Units

Evaluating the differences between a heavy-duty wheeled mechanical foam fire extinguisher and standard portable units highlights why mobile units are essential for large-scale liquid storage risks:

Evaluation Parameter	Wheeled Mechanical Foam (50L - 150L)	Portable Foam Unit (9 Litres)	Wheeled Dry Powder Unit (50 kg)
Agent Capacity	Massive (50 to 150 Litres liquid)	Limited (9 Litres liquid)	High (50 kg powder)
Throw Distance & Range	Superior (8 to 12 meters)	Moderate (2 to 4 meters)	High (6 to 10 meters)
Discharge Duration	Long (60 to 180 seconds)	Short (15 to 25 seconds)	Moderate (40 to 60 seconds)
Reignition Prevention	Exceptional (Forms lasting liquid seal)	Good for small areas only	Poor (Vapors re-ignite if powder shifts)
Mobility & Deployment	Wheeled trolley frame; single-operator transport	Handheld carrying handle	Wheeled trolley frame
Target Environment	Bulk fuel depots, refineries, docks	Small solvent shops, workshops	Gas terminals, general chemical plants

Primary Application Environments for Mobile Foam Protection

Deploying a wheeled mechanical foam fire extinguisher is vital across industrial operations handling substantial volumes of flammable liquids and solid combustibles:

• Petroleum Refineries & Bulk Fuel Depots: Essential for protecting fuel loading racks, oil storage tanks, pipeline manifolds, and tanker unloading bays against liquid spill fires.
• Chemical Processing & Solvent Warehouses: Provides high-volume liquid smothering across chemical processing suites, paint manufacturing bays, and solvent storage vaults.
• Airports, Helipads & Aircraft Hangars: Deployed along aircraft aprons and maintenance hangars to tackle aviation fuel spills and engine maintenance fires rapidly.
• Marine Ports, Docks & Shipping Terminals: Protects cargo docks, fuel bunkering stations, and shipboard engine bays from volatile hydrocarbon hazards.

Maintenance & Statutory Care Protocols

To ensure total emergency readiness, facility managers must follow routine statutory inspection procedures for every wheeled mechanical foam fire extinguisher on site:

• Monthly Pressure & Trolley Checks: Verify that the cylinder pressure gauge or external propulsive gas cylinder remains at correct operating limits. Inspect wheels, axle pins, and trolley frames for smooth mobility.
• Hose & Branchpipe Inspection: Check the 5 to 10-meter rubber discharge hose for cracking, kink points, or physical wear, ensuring the aspirated branchpipe air vents remain clear.
• Annual Fluid Inspection & Refilling: Schedule certified annual maintenance per IS 2190 standards to check AFFF foam concentration levels, inspect internal vessel linings, and conduct hydrostatic testing every 5 years.

Quality Standards & Regulatory Compliance

To ensure maximum safety and regulatory compliance, all fire safety hardware supplied by firespray.in adheres to strict quality benchmarks established by the Bureau of Indian Standards (BIS). Our heavy-duty wheeled units strictly conform to applicable national safety standards—such as IS 16018 and IS 15683—and undergo rigorous pressure testing, thermal resistance audits, and chemical purity checks. Sourcing ISI-marked equipment ensures that your fire suppression units perform reliably under extreme thermal emergencies while satisfying mandatory fire department audit requirements and statutory commercial building codes.
